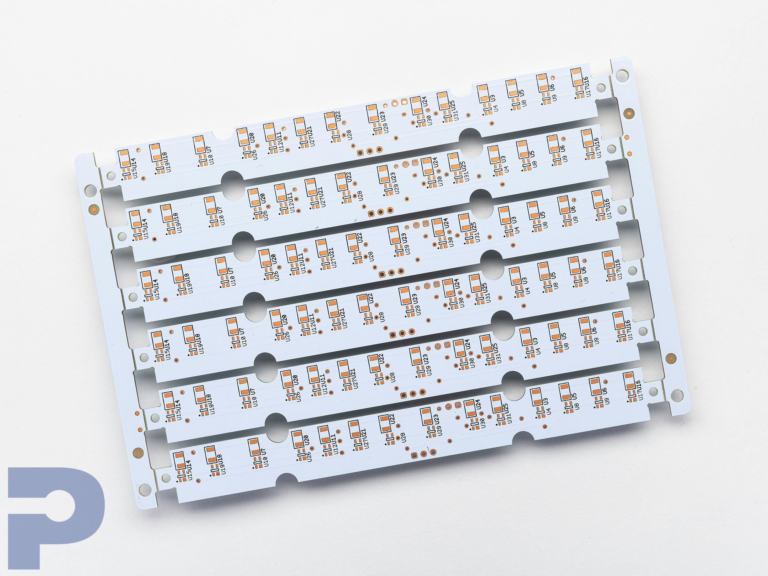

Metal Core Printed Circuit Boards (MCPCBs)

High-Performance Thermal PCB Solutions

PICA Manufacturing Solutions specializes in Metal Core PCB manufacture, delivering high-performance MCPCBs designed for demanding thermal management applications. Built with aluminum or copper cores, our metal core boards efficiently dissipate heat away from high-power components, ensuring stability and reliability even in harsh environments.

Compared to traditional FR-4 boards, metal core PCBs provide superior heat conductivity, mechanical strength, and extended device lifespan. From single-layer to multi-layer and hybrid MCPCB assemblies, PICA delivers precision-engineered solutions tailored to your thermal, electrical, and mechanical requirements.

Why Choose PICA for Metal Core PCBs?

  • Thermal Expertise – Specialized in heat-dissipating PCB solutions for LED, power, and other high-temperature applications.

  • Engineering Support – Expert DFM guidance to optimize thermal performance, reliability, and manufacturability.

  • Global Manufacturing – Facilities in the U.S. and Malaysia for scalable production and responsive delivery worldwide.

  • Proven Reliability – Strict quality systems ensure durable, high-performance MCPCBs built for harsh environments.

  • Custom Solutions – Single-layer, multi-layer, and hybrid designs tailored to your electrical, thermal, and mechanical needs.

Benefits of Metal Core PCBs

Efficient Heat Dissipation
The metal core acts as a built-in heat sink, spreading heat evenly across the board to prevent component overheating and ensure reliable operation.

Improved Reliability
By maintaining lower operating temperatures, MCPCBs reduce thermal stress, minimize solder joint fatigue, and extend the life of electronic devices.

Superior Thermal Management
With improved CTE (coefficient of thermal expansion), metal core PCBs allow for the integration of high-power components and consistent performance in demanding environments.

Markets & Applications

Medical Devices
Precise and heat-sensitive systems, where reliable thermal management is critical for performance and safety.

Automotive Electronics
Thermal solutions for rugged, vibration-prone, and high-heat automotive environments.

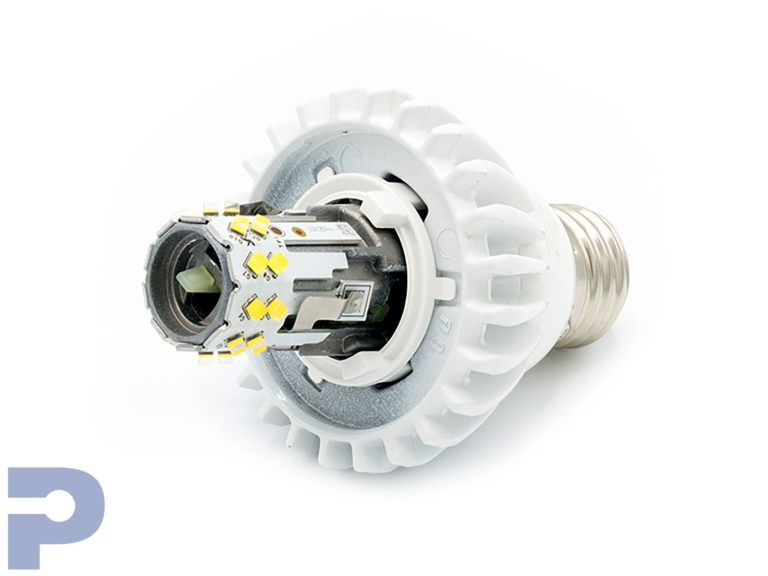

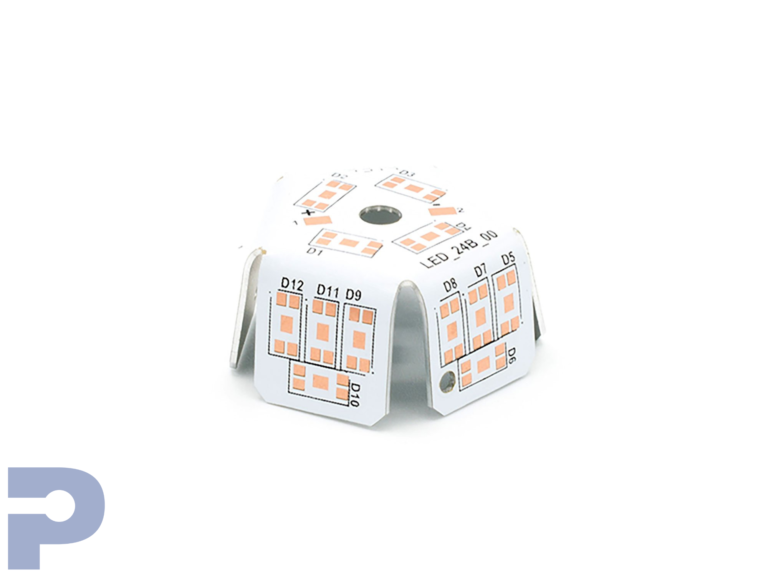

LED Lighting
Metal core PCBs efficiently manage heat generated by LEDs, extending lifespan and maintaining consistent light output.

Power Electronics
Ideal for power supplies, converters, and high-heat circuits requiring consistent thermal regulation.

Consumer Electronics
Used in audio amplifiers, RF modules, solar inverters, and computing hardware such as data storage systems.
